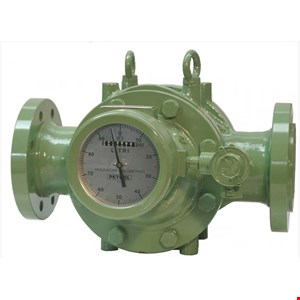

PD Flowmeters Type : 1.Single Case PD Flowmeters2.Double Case PD Flowmeters3.Master Meters  Instruments Main Application Fields :  - Petroleum Industry - Petrochemical Industry - Chemical Industry - Pharmaceutical Industry - Crude Oil Extraction - Power Plants Industry - Ships and Steel Making Industry  Main Features Excellent Accuracy and Repeatability: Accuracy : ± 0,15% for fiscal applications and ± 0,5% for general purpose Repeatability: ± 0,02% Low Pressure Drop: The straight-through path and floating rotor design create a very low pressure drop at maximum flow Production Line: Flange size: 1” ÷ 16” Max. Flow rate: 2.000 m3/h Max. pressure: 150 bar Max. temperature: 250 °C Max. Viscosity: 50.000 cP Materials of Construction: A broad range of materials are available to meet customer application requirements Floating Type Rotors: Rotors never touch each other but are synchronized by timing gears mounted outside the measuring chamber. Rotors are not therefore subject to wear and PD flowmeter does not need re-calibration with time due to wearing Magnetic transmission: sealing between the wetted parts and the dry parts of the PD flowmeter is of static type, and this fully guarantees against any leakage of the flowing liquid Wide Range of Accessories: A complete line of accessories are available to meet a broad range of applications. Intrinsically safe and explosion proof versions available Conformity with International Standards: PED, ATEX, OIML R117, API MPMS, ISO 9001, ISO 14001, ISO 45001, IP/NEMA, LR International Approvals for Fiscal Applications: Indonesian Approval (MIGAS),
